DY Series PAM Fully Automatic Chemical Dosing Device

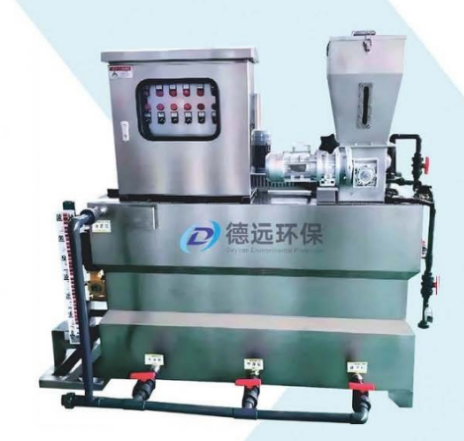

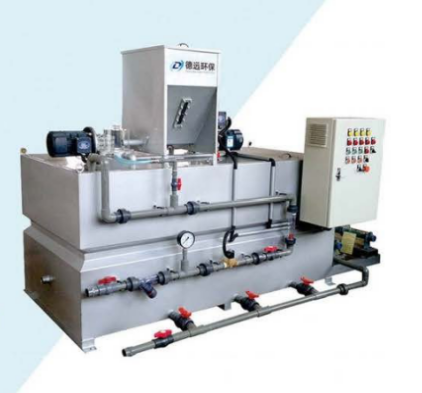

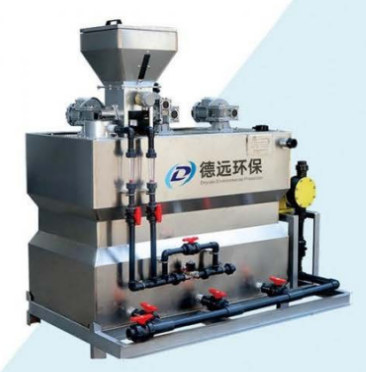

The fully automatic chemical dosing device primarily consists of a solution tank, mixer, metering pump, Y-type filter, backpressure valve, check valve, pulse dampener, water level gauge, pressure gauge, control cabinet, and mounting platform, all integrated into a single unit mounted on a common base.

The fully automatic chemical dosing device is specifically designed for the addition of various water treatment chemicals, including water quality stabilizers, coagulants, and disinfectants. This equipment features a compact design, convenient installation and operation, and stable performance, as well as low energy consumption, corrosion resistance, and low noise levels.

Equipment Advantages

☑ The system is safe and reliable with stable performance; in the event of a malfunction, the relevant equipment will automatically shut down as required.

☑ The chemical mixer is constructed as a single-piece stainless steel unit, ensuring 100% dissolution efficiency.

☑ A screw feeder is used for powder dosing, ensuring uniform and dispersed feeding with an accuracy of within 1%.

☑ A high-efficiency, dedicated stainless steel reduction mixer prevents the breakage of macromolecular chains.

☑ Excellent corrosion resistance; all components in contact with the medium are made of engineering plastics and stainless steel.

☑ High degree of automation; the power distribution system displays the operating status of each unit, making operation simple and installation convenient.

☑ Feature a three-tank overflow solution operation system, resulting in a simple structure, compact size, and easy installation. Suitable for environments requiring continuous dissolution and continuous chemical dosing.
